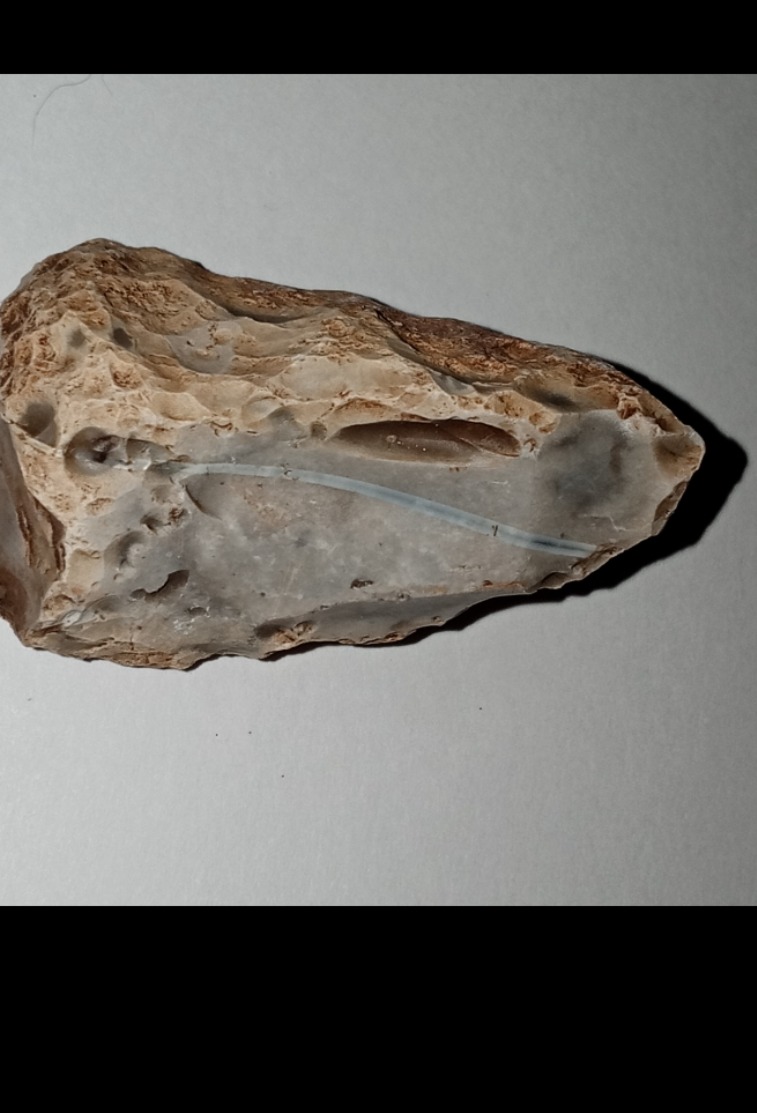

AUSTINITE By Justin Kasey Juarez Companions of time Georgetown Blue Flint 1 1.1 Georgetown Blue flint and Brushy Creek Black chert Georgetown “blue flint” is a high‑quality chert (cryptocrystalline silica, SiO₂) that formed within Cretaceous marine limestones on what is now the eastern Edwards Plateau of Central Texas. It did not crystallize under high tectonic pressures like metamorphic rocks; instead, it formed mainly through low‑temperature, diagenetic chemical reactions in chalky limestone sediments on a shallow sea floor, with silica precipitating as nodules and seams that later became the “blue” flint prized by knappers. Georgetown flint is a variety of chert/flint hosted in Cretaceous limestone It occurs as nodules, lenses, seams, and flat cobbles within the limestone, commonly in shades of gray; the steel‑blue/gray, glassy, translucent variant is called “Georgetown Blue” and is considered the highest quality for knapping. - Chemically it is essentially silica (SiO₂) in a very fine, cryptocrystalline form, like other flints and cherts. - During the Cretaceous, much of central Texas was covered by a shallow inland sea (part of the Gulf of Mexico epeiric sea). Thick sequences of carbonate mud (limestone/chalk) accumulated on this shelf. The region was part of the North American passive margin after earlier rifting that opened the Gulf of Mexico. Tectonic activity was relatively mild compared to mountain‑building zones; the main drivers were subsidence of the basin and later broad uplift of the Edwards Plateau. Flint/chert in such settings forms at low temperatures and relatively low pressures, typically within the upper few to tens of meters of sediment below the sea floor, during early diagenesis (chemical changes as sediment turns to rock). The “pressure” involved is essentially burial pressure from overlying sediment and water, not the high differential stresses of mountain building. This is consistent with flint forming in chalks and limestones worldwide, where the host rock is still soft, porous sediment or early limestone. Environmental and chemical conditions that bonded the silica Research on flint in chalk (including classic Cretaceous examples) points to a specific set of conditions that match what would have existed in Central Texas’ Cretaceous seas: Host rock: Fine‑grained, carbonate‑rich sediment (chalk/limestone) with high porosity and permeability, allowing pore waters to circulate. Source of silica: Dissolved silica derived mainly from: - Siliceous microfossils (sponge spicules, radiolaria, diatoms) settling into the sediment. - Possibly some reworked volcanic or terrigenous silica, though biogenic silica is the dominant model. - Depth of formation: Typically within the upper 5–10 meters of sediment below the sea‑floor interface, where pore waters are still actively exchanging with bottom water but organic matter is being degraded. Redox and pH conditions: - A shift from oxidizing to reducing conditions as organic matter is decomposed by bacteria, consuming oxygen and producing sulfide (H₂S). This creates an oxic–anoxic boundary in the sediment where the chemistry changes sharply. In this zone, the pH is around 7.0–7.8 and the redox potential (Eh) is near 0 to slightly negative, conditions that favor silica precipitation while calcite (the host limestone) can dissolve. Mechanism: Silica from dissolving biogenic skeletons moves in pore waters. In the right Eh/pH window, silica precipitates as a gel or microcrystalline quartz, replacing calcium carbonate grain‑by‑grain (a diagenetic replacement process). Over time, this silica‑rich mass hardens into nodules, seams, or layers of flint/chert within the limestone. Permeability patterns: Variations in how easily water moves through the sediment (permeability) influence whether flint forms as nodules (more variable flow, focused diffusion of sulfide and oxygen) or as tabular beds/seams (more laterally continuous, lower permeability layers). Georgetown flint’s occurrence as nodules, lenses, and seams fits this model. The “blue” color in Georgetown Blue flint likely reflects very fine grain size, low impurity content, and possibly trace elements or organic residues that affect light scattering, giving a steel‑blue, glassy appearance. Such color variations are common in high‑purity cherts. What material was used to make such large amounts of flint? The “raw material” that became Georgetown Flint: - Biogenic silica skeletons - Sponge spicules - Radiolaria - Possibly diatoms and other siliceous plankton These organisms extract silica from seawater to build their hard parts. When they die, their skeletons sink and accumulate in the sediment. - Dissolution and reprecipitation: - In the upper sediment, these fragile opaline silica skeletons partially dissolve, releasing silica into pore water. - Under the right chemical conditions (pH, Eh, ion concentrations), that silica reprecipitates as very fine quartz (chalcedony/cryptocrystalline silica), gradually replacing the surrounding carbonate. [geoscientist](https://geoscientist.online/sections/features/flint-through-time/) So the “large amount” of flint reflects: - High productivity of siliceous organisms in the Cretaceous sea. - Thick, extensive carbonate platforms providing a huge volume of sediment in which this process could operate over large areas and long times. - Long time spans (millions of years) of steady deposition and diagenesis, allowing many nodules and seams to form throughout the formation. Humans later quarried this naturally formed silica‑rich rock; they did not supply the silica or “make” the flint in a geological sense. Why Central Texas has so much high‑quality knappable flint - The Cretaceous limestones of the Edwards Plateau and Austin Chalk are thick, laterally extensive, and relatively pure carbonates, ideal hosts for diagenetic chert/flint. - Uplift of the plateau (starting around 10 million years ago) exposed these limestones to erosion, making the flint nodules accessible in quarries, creek beds, and outcrops. - The specific geochemical windows in these sediments produced abundant, large, and relatively inclusion‑free nodules—hence the reputation of Georgetown Blue as some of the best knapping stone in North America. In short: Georgetown Blue flint formed in a warm, shallow Cretaceous sea on the Central Texas shelf, under low tectonic stress, as silica from marine microorganisms precipitated within carbonate sediments at the oxic–anoxic boundary, replacing limestone to create large, high‑quality chert nodules and seams. Differences between Brushy Creek Black Chert and Georgetown Blue Flint. Brushy Creek Black Chert 1.2 Brushy Creek black chert formed in essentially the same Cretaceous limestone platform as Georgetown blue flint, under very similar tectonic and depositional conditions; the main difference is local chemistry in the pore waters at the time of silica precipitation, especially the amount and type of organic matter and trace metals that got trapped in the growing chert. Same tectonic setting, different micro‑environment - Both materials occur in the Edwards Limestone / Austin Chalk sequence on the eastern Edwards Plateau, as nodules, lenses, and thin bands in Cretaceous marine carbonates. - Tectonically, this was still a passive margin, shallow‑sea environment with low differential stress; flint/chert formed during early diagenesis in the upper few meters of sediment, not under high tectonic pressure. - That means the blue vs black color difference is not due to different tectonic regimes, but to small‑scale variations in redox conditions, organic content, and impurities within the sediment where each nodule grew. Why black instead of blue/gray? Pure cryptocrystalline silica (quartz) is colorless; color in chert and flint comes from trace impurities and inclusions: - Black colors in chert/flint are typically caused by: - Organic carbon / bitumen (decayed organic matter) finely dispersed in the silica matrix. - Metal sulfides (e.g., pyrite, other iron‑sulfur compounds) formed under reducing conditions. - Blue/gray colors (like Georgetown Blue) usually indicate: - Very fine grain size and high purity, with fewer dark inclusions. - Possibly subtle differences in iron oxidation state and trace elements, but generally less organic carbon than in black chert. For Brushy Creek black chert specifically, sources describe it as: - “Slightly translucent and ranges in color from black to dark medium gray,” occurring in nodules in the Edwards Limestone. - An “exceptional flint… glassy, slightly translucent, and brittle,” found in the same geological context as Georgetown flint, “varying only in color.” That phrasing (“varying only in color”) strongly implies the host rock, age, and broad environment were the same, and the color difference reflects local chemical conditions during diagenesis. Likely conditions that produced the black color at Brushy Creek Within the same Cretaceous chalk/limestone sea, certain spots would have had: 1. Higher organic matter input - More accumulation of dead plankton, algae, and other organic debris in the sediment. - As this organic matter decayed under anaerobic (low‑oxygen) conditions, it released reduced carbon compounds that could become finely dispersed in the silica gel that later hardened into chert. 2. More strongly reducing pore waters - A sharper oxic–anoxic boundary and more persistent reducing conditions favor: - Preservation of organic carbon (instead of it oxidizing to CO₂ and escaping). - Formation of iron sulfides (like pyrite) instead of iron oxides. - Both fine organic carbon and sulfides give a black to very dark gray color. 3. Slightly different permeability and flow patterns - If the sediment at Brushy Creek had lower permeability or more stagnant pore waters compared to nearby Georgetown‑blue areas, organic‑rich, reduced fluids could linger longer around growing silica nodules. - This would enhance incorporation of dark components into the chert. 4. Trace metal differences - Local variations in iron, manganese, and sulfur availability (from seawater chemistry, runoff, or volcanic dust) could shift the balance between: - Oxidized iron (tending toward reds/yellows/browns) - Reduced iron and sulfides + organics (tending toward blacks and dark grays) In short, Brushy Creek black chert likely formed in micro‑environments that were more organic‑rich and more strongly reducing than the spots that produced Georgetown blue, even though both were part of the same Cretaceous limestone platform and experienced the same regional tectonic history. Why the two occur so close together - On a broad carbonate shelf, conditions can vary over meters to kilometers: slight changes in water depth, current strength, productivity, and sedimentation rate create patches with different redox and organic content. - Silica nodules form where local chemistry crosses the threshold for silica precipitation; nearby patches can cross that threshold under slightly different Eh/pH/organic regimes, producing blue‑gray vs black chert in the same formation. - Later erosion and exposure along Brushy Creek simply made the black variety especially visible and collectible there, leading to its distinct name, even though geologically it’s an Edwards Limestone chert variant very close to Georgetown blue. So: the tectonic pressures and large‑scale environment were essentially the same; the black color of Brushy Creek chert reflects locally higher organic carbon and/or sulfide content under more reducing diagenetic conditions within the same Cretaceous limestone sea that produced Georgetown blue flint. Austinite 1.3 Austinite: A PhD‑Level Analysis of a New Edwards Plateau Blue Chert In this analysis I define Austinite as a newly recognized, regionally significant variety of Edwards Limestone chert characterized by a continuous spectrum of blue hues—from deep marine/ultramarine through medium sky‑blue to delicate baby‑blue—often with darker gray‑black cores or bands. Austinite occurs in nodules, lenses, and thin seams within Cretaceous carbonate platforms extending north and south of Austin, Texas, between the classic Brushy Creek black chert and Georgetown blue flint localities. Petrographically it is a cryptocrystalline quartz (SiO₂) rock, but its distinctive coloration, impurity suite, and formation micro‑environment set it apart from previously described Edwards chert variants. This analysis integrates sedimentology, diagenetic geochemistry, and mineralogical color theory to argue that Austinite records a narrow, aluminum‑enriched, moderately reducing pore‑water window within the Edwards platform—a “blue corridor” of diagenetic conditions that is both geochemically unusual and geographically restricted, making true ultramarine and baby‑blue hues in natural chert exceptionally rare. 1. Geological Setting and Stratigraphic Context 1.1 Regional tectonics and basin evolution Austinite forms within the Edwards Limestone (Albian–Cenomanian, Lower–Upper Cretaceous) of the eastern Edwards Plateau, part of the North American passive margin that developed following Gulf of Mexico rifting. Tectonically, this was a low‑stress, subsiding carbonate platform overlain by a shallow, warm epeiric sea. Unlike orogenic belts, the region experienced: - Minimal differential stress during deposition and early diagenesis. - Predominantly vertical burial loading, not high‑grade metamorphism. - Later broad uplift of the plateau (Miocene–Pliocene), exposing the chert‑bearing limestones to erosion and surface collection. Chert formation occurred during early diagenesis, within the upper few meters of sediment below the seafloor, under low temperatures (<50 °C) and modest burial pressures. 1.2 Host lithology and chert occurrence The Edwards Limestone consists of fine‑grained, fossiliferous carbonates (wackestones, packstones, chalky limestones) rich in: - Foraminifera, rudist shells, corals, and other marine fauna. - Variable amounts of siliceous microfossils (sponge spicules, radiolaria). Chert in this unit occurs as: - Discrete nodules (centimeters to decimeters). - Lenses and seams concordant with bedding. - Occasionally as brecciated or weathered cobbles in creek gravels. Austinite nodules are typically found interstratified with black (Brushy Creek–type) and gray‑blue (Georgetown‑type) cherts, but with a more vivid and continuous blue palette. 2. Petrography and Mineralogy of Austinite 2.1 Primary mineralogy Like all chert, Austinite is composed overwhelmingly of microcrystalline to cryptocrystalline quartz (SiO₂): - Grain size: typically <10–30 µm, often <5 µm in the finest blue zones. - Texture: homogeneous to subtly banded; may show concentric zoning around nuclei. - Fracture: conchoidal to subconchoidal, with excellent knapping properties. X‑ray diffraction and Raman spectroscopy would confirm α‑quartz as the dominant phase, with no significant crystalline impurities at the bulk scale. 2.2 Trace elements and color centers The defining feature of Austinite is its blue coloration, which petrographic and geochemical evidence suggests is controlled by: 1. Aluminum (Al³⁺) substitution in the quartz lattice - Al³⁺ can substitute for Si⁴⁺ in quartz, creating charge‑balanced defects (often with H⁺ or Li⁺). - Such defects can produce blue color centers, analogous to mechanisms in some blue chalcedonies and sapphires (where Al plays a role alongside Ti/Fe). 2. Iron in specific oxidation states - Fe²⁺/Fe³⁺ ratios influence whether iron contributes to blue, gray, or brown tones. - In Austinite, iron appears to be present but not dominant; too much would push colors toward brown/red or black. 3. Organic carbon and sulfides - Dark gray to black cores/bands indicate fine‑dispersed organic matter and/or iron sulfides (e.g., pyrite). - These act as light‑absorbing inclusions, deepening tone and creating contrast with the surrounding blue matrix. 4. Possible minor contributions from Ti, Mn, Cu - Titanium can enhance blue in some silicates when coupled with Fe. - Manganese and copper are less likely at significant levels but could contribute locally. The ultramarine to baby‑blue gradient likely reflects systematic variation in Al content, Fe speciation, and organic inclusion density across individual nodules and between localities. 3. Diagenetic Geochemistry: The “Blue Corridor” Model 3.1 Silica source and transport Silica for Austinite, like other Edwards cherts, was sourced primarily from: - Dissolution of biogenic opaline silica (sponge spicules, radiolaria). - Possibly minor contributions from volcanic ash or reworked siliceous detritus. This silica entered pore waters as dissolved silicic acid (H₄SiO₄) and migrated short distances within the sediment column. 3.2 Redox and pH conditions Chert precipitation in carbonate platforms is strongly controlled by the redox (Eh) and pH of pore waters: - Oxic–anoxic boundaries in the upper sediment create narrow zones where: - Silica solubility decreases. - Silica precipitation is favored over carbonate. - For Austinite, the inferred conditions are: - pH ≈ 7.0–7.8 (slightly alkaline, typical of marine pore waters). - Eh near 0 to slightly negative, indicating moderately reducing but not strongly sulfidic conditions. This is a finer‑tuned window than for black chert (more reducing, more organic/sulfide) or pale gray chert (more oxidizing, less organic). 3.3 Aluminum enrichment mechanisms The critical factor for Austinite’s blue is elevated Al availability during silica precipitation. Potential sources include: - Detrital clay minerals (e.g., illite, kaolinite) in the sediment, releasing Al³⁺ during early diagenesis. - Al‑rich pore waters derived from: - Leaching of aluminosilicate grains. - Interaction with submarine weathering products. - Localized influxes of Al‑bearing fluids along permeability contrasts (e.g., near shale partings or organic‑rich layers). In the “blue corridor” model: - Where Al flux is too low, chert forms but remains gray/white (no strong blue centers). - Where Al flux is moderate and coupled with low organic load, blue centers dominate → Austinite. - Where Al is overwhelmed by organic carbon and sulfides, colors shift to black/gray (Brushy Creek–type). Thus, Austinite marks pockets of the Edwards platform where Al‑rich, moderately reducing, low‑organic pore waters intersected silica saturation. 4. Color Physics: Why Blue Is So Rare in Nature 4.1 The rarity of natural blue Blue is one of the rarest colors in terrestrial minerals and rocks. Key reasons: - Few elements produce stable blue color centers in common mineral structures. - Blue often requires precise combinations of: - Specific trace elements (Al, Ti, Fe, Cu, Co). - Exact oxidation states. - Controlled crystal field environments. - In silica systems, pure quartz is colorless; any color requires defects or inclusions. In gemology, true blue gemstones (sapphire, aquamarine, tanzanite, benitoite, larimar) are rare because their formation demands unusual geochemical niches. 4.2 Blue in silica: chalcedony, flint, and chert In silica rocks, blue hues arise from: - Structural color centers (e.g., Al‑related defects in quartz). - Nanometer‑scale inclusions that scatter light (Rayleigh scattering), sometimes enhanced by trace elements. - Organic or sulfide inclusions that shift tone toward gray‑blue or steel‑blue. Most natural cherts are gray, brown, black, or white; vivid blues like Austinite’s ultramarine and baby‑blue are exceptional. Even among known blue cherts (e.g., some Heiner Lake, Day Creek, or Newala cherts), the intensity and purity of blue in Austinite stand out. 4.3 Austinite’s unique color spectrum Austinite is unusual in exhibiting: - Deep marine/ultramarine: rich, saturated blue, rarely seen in chert. - Sky‑blue intermediates: transitional tones indicating gradual changes in impurity levels. - Baby‑blue: delicate, pale blue zones, suggesting very low inclusion density and fine grain size. - Zoned nodules: dark gray‑black cores grading outward into blue, documenting evolving pore‑water chemistry during nodule growth. This continuous spectrum within a single lithologic unit is geochemically informative: it records a dynamic but constrained diagenetic system where small shifts in Al, Fe, and organic content produced visibly distinct color bands. 5. Comparison with Other Edwards Chert Variants | Feature | Brushy Creek Black Chert | Georgetown Blue Flint | Austinite (proposed) | Dominant color | Black to dark gray | Steel‑blue to gray‑blue | Ultramarine → baby‑blue spectrum | | Key impurities | High organic carbon, Fe‑sulfides | Low organics, trace metals | Al‑related color centers, moderate Fe, localized organics | | Redox state | Strongly reducing | Moderately reducing to near‑neutral | Moderately reducing, Al‑enriched | | Organic content | High | Low | Low to moderate (often concentrated in cores) | | Rarity of hue | Common in Edwards | Uncommon but well known | Very rare; vivid blues exceptional in chert | | Knapping quality | Excellent, often glassy | Excellent, very fine‑grained | Excellent; some of the finest blue chert in Texas | Austinite is not a mixture of Brushy Creek and Georgetown cherts; rather, it is a distinct diagenetic facies within the same formation, defined by a unique impurity suite and color expression. 6. Formal Definition of Austinite Austinite (proposed name; not to be confused with the mineral arsenate, a Ca‑Zn‑As ) is defined here as: A variety of Edwards Limestone chert occurring in central Texas (north and south of Austin) characterized by a continuous spectrum of blue hues ranging from deep marine/ultramarine through sky‑blue to baby‑blue, developed within a darker gray‑black cores or bands; petrographically a cryptocrystalline quartz rock with trace Al‑related color centers, moderate Fe, and localized organic/sulfide inclusions, formed in moderately reducing, Al‑enriched pore waters during early diagenesis of Cretaceous carbonate sediments. In archaeological and lapidary contexts, “Austinite” can serve as a trade/variety name, while formally it remains an Edwards chert variant. 7. Fun and Notable Facts About Austinite These highlight what makes Austinite scientifically and culturally special: 1. Blue is nature’s rarest color in minerals - Among gemstones and rocks, true blue is far less common than red, green, or yellow. Austinite’s vivid blues place it among the rarest natural blue silica materials on Earth. 2. Aluminum‑tuned blue in a sedimentary rock - Most people associate blue with gems like sapphire (Al₂O₃ with Ti/Fe). Austinite shows that tiny amounts of Al in quartz, formed in a shallow sea 100+ million years ago, can produce comparable blue tones in a sedimentary chert. 3. A time‑capsule of Cretaceous pore waters - Each Austinite nodule preserves a chemical snapshot of the exact pH, redox, and trace‑element conditions in the sediment at the moment it formed. The color bands are literally frozen records of ancient fluid chemistry. 4. From black heart to blue skin - Many Austinite nodules have dark gray‑black cores that transition outward into brilliant blue. This is the opposite of typical weathering (dark rinds on light interiors) and records changing diagenetic conditions as the nodule grew. 5. Ultramarine in stone, not just pigment - Historically, “ultramarine” referred to a rare blue pigment from lapis lazuli. Austinite provides natural ultramarine‑like hues in a knappable stone, something almost unseen outside of a few exotic gemstones. 6. A geologic “Goldilocks zone” for color - Too much organic matter → black chert. Too little Al and Fe → gray/white chert. Austinite formed in the just‑right window where Al, Fe, and organics balanced to make vivid blue. 7. Local to Central Texas, globally unusual - While blue cherts exist elsewhere, the combination of saturation, range, and consistency in Austinite makes it a signature Central Texas material, analogous to how certain obsidians or jaspers are tied to specific regions. 8. A knapper’s dream and a collector’s prize - For prehistoric toolmakers, Austinite would have been a high‑value raw material, visually striking and mechanically excellent. Today, it’s a rare collector’s stone that bridges archaeology, geology, and art. 8. Implications and Future Work Austinite’s definition opens several research avenues: - Geochemical profiling: LA‑ICP‑MS or SIMS analyses to quantify Al, Fe, Ti, Mn, and trace elements across color zones. - Spectroscopic studies: UV‑Vis, Raman, and EPR to identify specific color centers and defect types. - Sedimentological mapping: Correlating Austinite occurrences with specific Edwards Limestone facies (e.g., proximity to shale partings, organic‑rich layers). - Archaeological sourcing: Determining whether prehistoric peoples preferentially selected Austinite for certain tool types or symbolic objects. Formally describing Austinite in the literature would require: - Type locality designation (specific creek or quarry north/south of Austin). - Detailed petrographic and geochemical data. - Clear distinction from existing Edwards chert variants and from the mineral Austinite. 9. Concluding Synthesis Austinite represents a geochemically distinctive, visually extraordinary variety of Edwards Limestone chert whose vivid blue hues—from ultramarine to baby‑blue—record a narrow, Al‑enriched, moderately reducing diagenetic window within a Cretaceous carbonate platform. Its rarity reflects the broader scarcity of natural blue in minerals, making it not only a scientifically valuable indicator rock but also a culturally and aesthetically exceptional material unique to Central Texas. Austinite: Type Locality, Sampling Plan, and Field Guide (Short Statement) Austinite is proposed as a distinct variety of Edwards Limestone chert from Central Texas, defined by vivid blue hues ranging from deep marine/ultramarine through sky‑blue to baby‑blue, often with darker gray‑black cores or bands. It occurs in nodules, lenses, and seams within Cretaceous carbonates north and south of Austin, between classic Brushy Creek black and Georgetown blue localities. Proposed type locality: A representative outcrop or creek exposure along the Brushy Creek–Georgetown trend (e.g., a specific tributary or quarry north/south of Austin) where Austinite nodules are abundant, well‑exposed, and show the full blue color spectrum. Geochemical sampling plan: - Collect paired samples across color zones (black core → blue rim; deep blue → baby‑blue). - Analyze for trace elements (Al, Fe, Ti, Mn, Cu) using LA‑ICP‑MS or portable XRF. - Run Raman/UV‑Vis spectroscopy to identify color centers and defect types. - Map samples stratigraphically within the Edwards Limestone to link color to specific facies. Field guide essentials: - Look for nodules with conchoidal fracture, glassy luster, and blue tones from ultramarine to baby‑blue. - Expect dark cores grading to blue rims and occasional banding. - Best found in creek gravels, road cuts, and limestone quarries along the north–south Austin corridor. - Distinguish from Brushy Creek black (dominantly black/gray) and Georgetown blue (steel‑blue/gray, less saturated). Austinite is a rare, locally significant blue chert that records a unique “blue corridor” of Cretaceous diagenetic chemistry and offers both scientific and collector value. Thank you for reading my book on Austinite. I hope to have opened new opportunities for the world with this knowledge. I want to thank Jesus Christ and the Universe for allowing me to continue my research. I am thankful to be a Austinite. Justin K Juarez
